Application:
To be used for applications that require electromagnetic compatibility(EMC) to supply motors from variable speed controllers in fixed installations and variable speed drive equipment or other application requiring screened cables

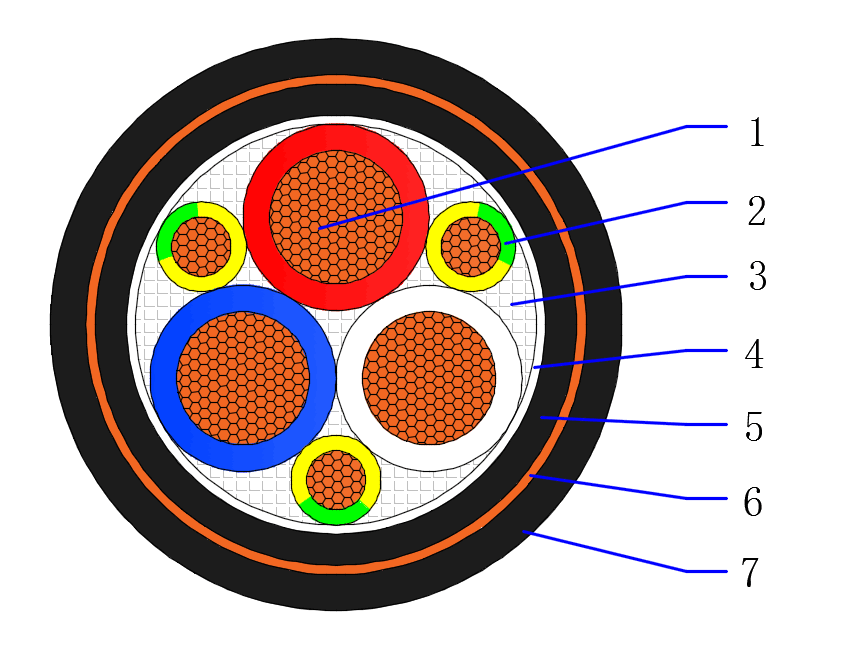

Construction:
      1.    Conductor - Plain annealed class 2 stranded (compacted) copper
     2.    Insulation - Crosslinking polyethylene (XLPE)

3.    Filler - Non-hygroscopic material

4.    Binder tape - Non-hygroscopic material tape

5.    Inner sheath - Polyvinyl chloride compound (PVC)

6.    Screen- Plain annealed copper tape

7.    Outer sheath - Polyvinyl chloride compound (PVC)

Cross Section：

3 core+3 earth; 1.5mm2~400mm2

Temperature characteristics:

Conductor operating temperature: -15℃~90℃

Min. temperatrue laying condition: 0℃

Conductor emergency operating temperature: 105℃

Conductor short-circuit operating temperature (5s): 250℃

Electrical Characteristics:

Rated voltage: 0.6/1 (1.2) kV

High voltage test: 3.5kV / 5min

Color:

Insulation: Red, white, blue for phase, Y/G for earth

Outer sheath: Black or according to customer requirements

Standard:

Cable design: IEC 60502-1 or AS/ZNS 5000.1

Conductor: IEC 60228 or AS/ZNS 1125
